Matek FCHUB-6S (184A Current Sensor and BEC)


#1

Just wanting some advice hooking up my Matek FCHUB-6S (184A Current Sensor and BEC) to my ESCs and my F4 V5.1.

Do I connect the white wires from my individual ESCs to the PDB? Then, do I connect the 4 outputs from the PDB to my FC in place of where I would normally have the white wires?
If that’s the case, what do I do with the ESC 0V? Just hook it up to a common ground… anywhere?


#2

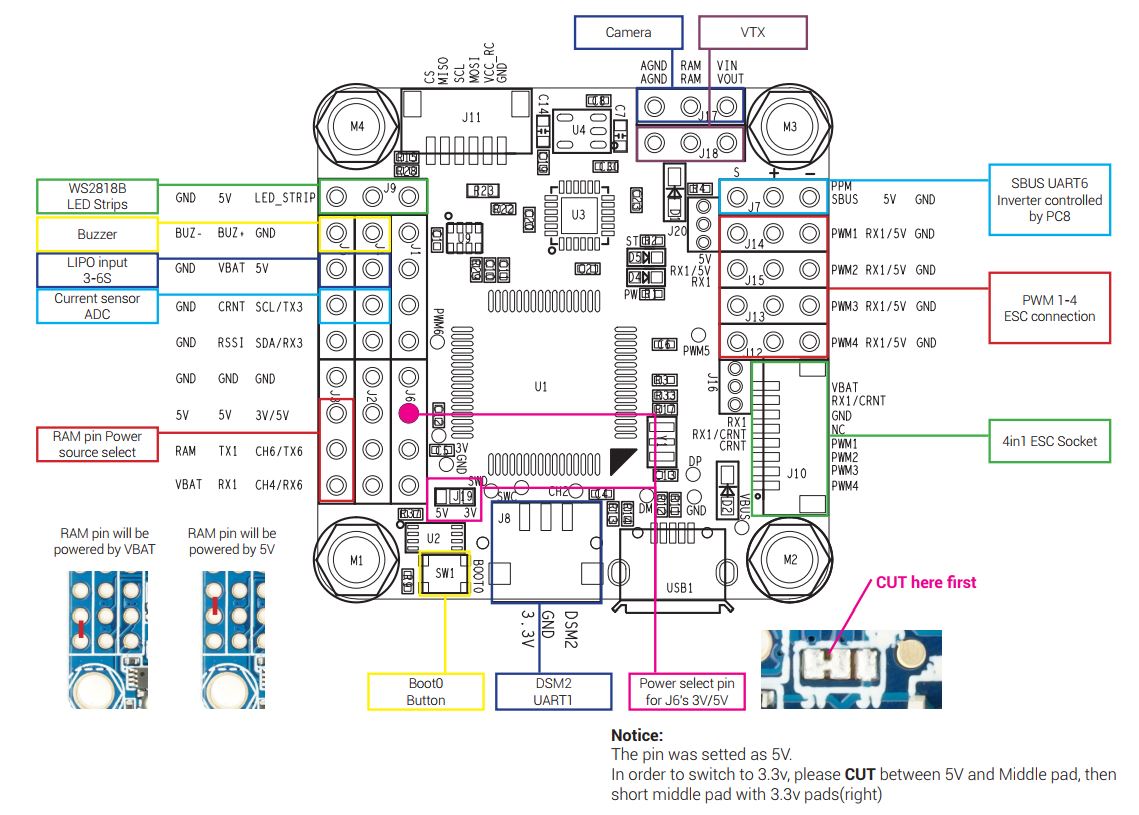

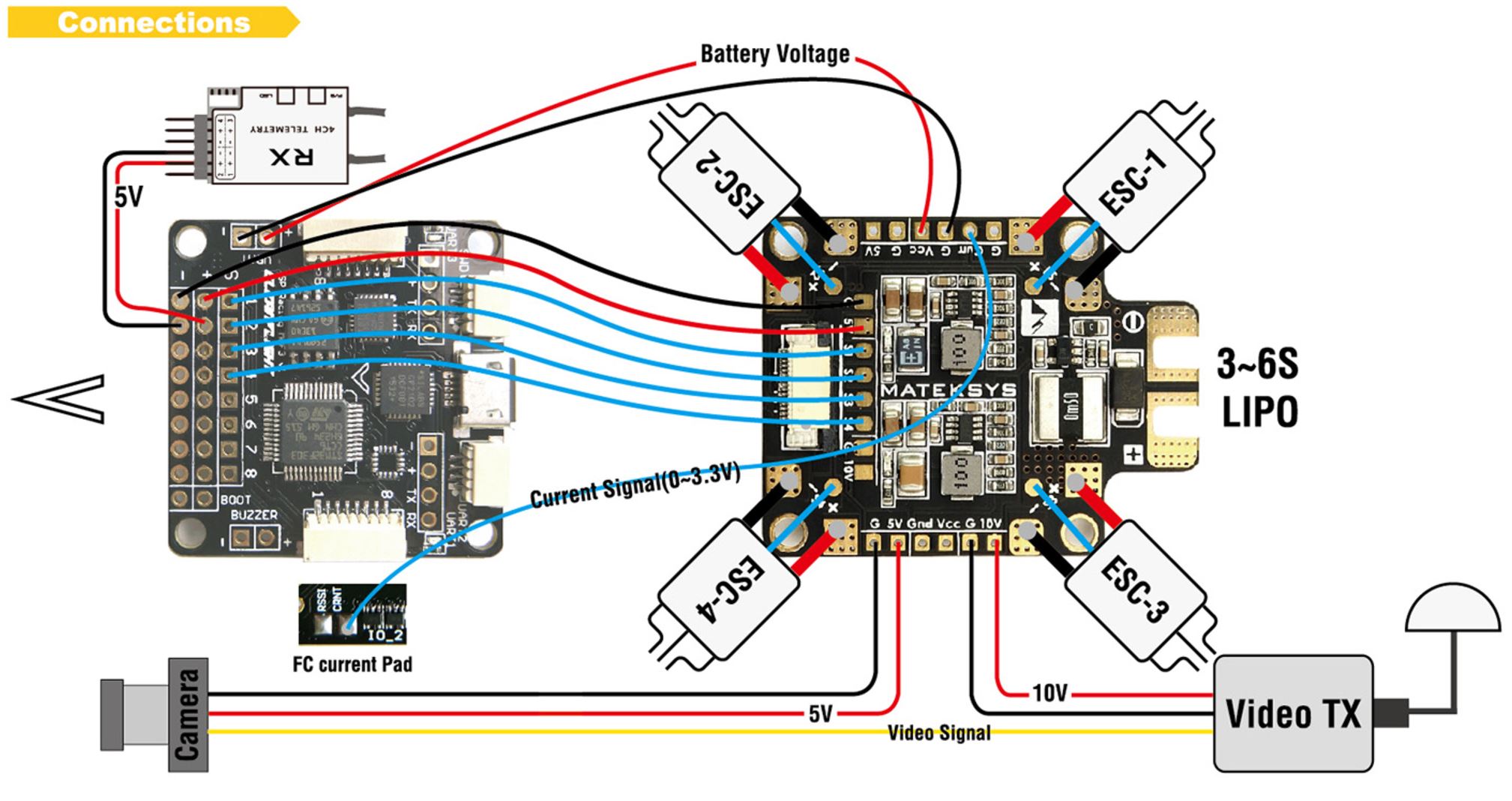

You can do as per pic. I would just put esc signal wire direct to your FC, a lot less to go wrong, the small ground wire from esc just desolder you don’t need it. if you keep it any ground will do.


#3

Thanks Dale.
I was curious more than anything as to what benefit this would have wiring up your ESC via the PDB. It all seems a bit over the top.
I thought it may have something to do with the current sensor… or something.
I actually already have this hooked up straight to the FC and it flies just fine.
Thanks for your input though.


#4

it will work either way you choose to power the ESCs

The way I do it is
Lipo to PDB
ESC to PDB

Why ?
The current sensor is normally part of the PDB
But it also keeps the main voltage on the PDB.
LIPO > PDB > ESC
and leaves the FC with less voltage to handle and filter out.
