How to wire an Analogue Airspeed Sensor to work with the Matek F405-WING

Guides
, , , ,
1

Just a quick post to share this useful diagram Matek provided to show how to wire an Analogue airspeed sensor vs a digital sensor to their F405 Wing :slight_smile:

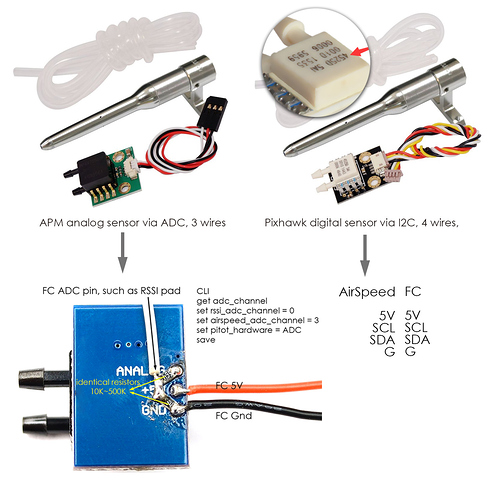

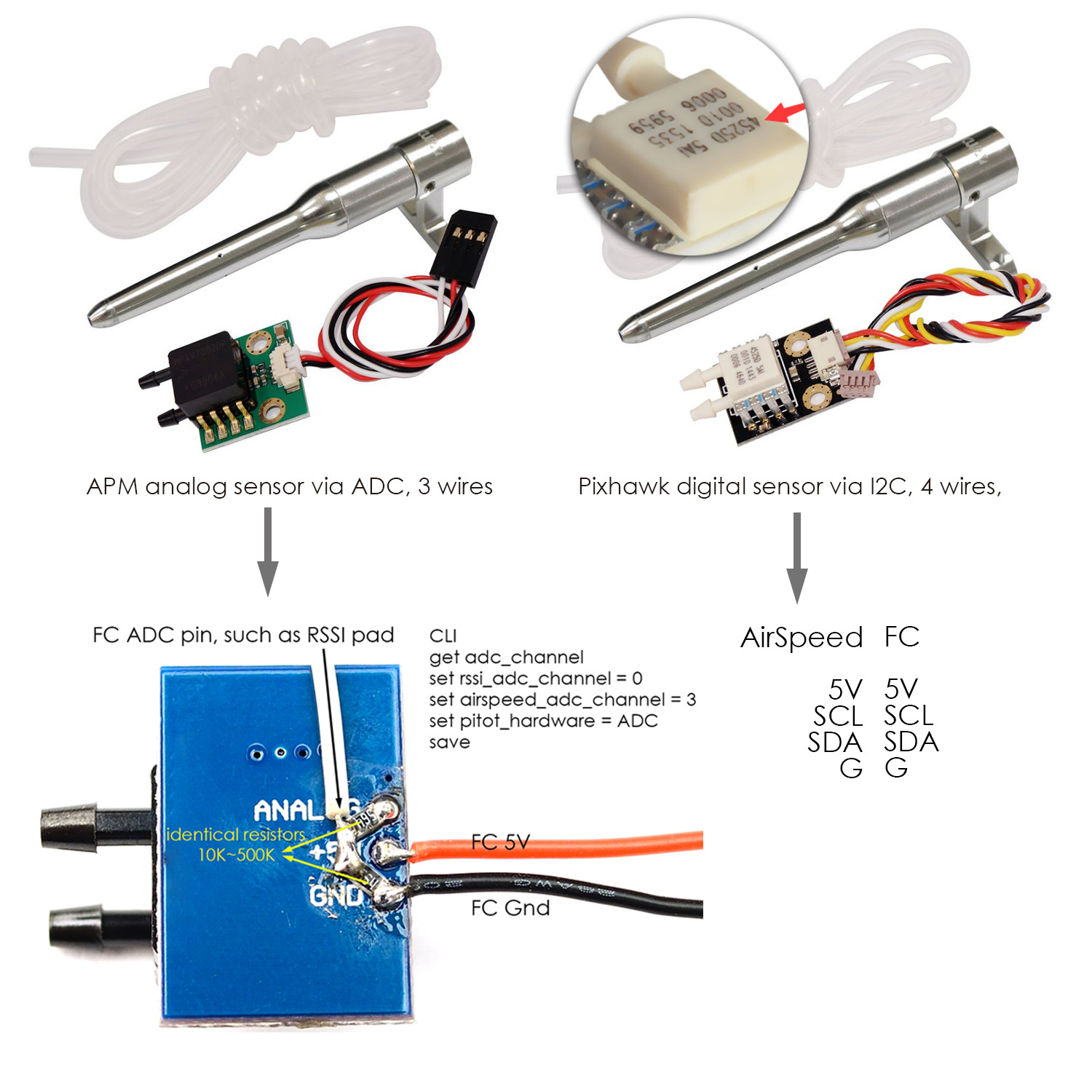

F405-WING_pitot
F405-WING_pitot1500×1500 307 KB

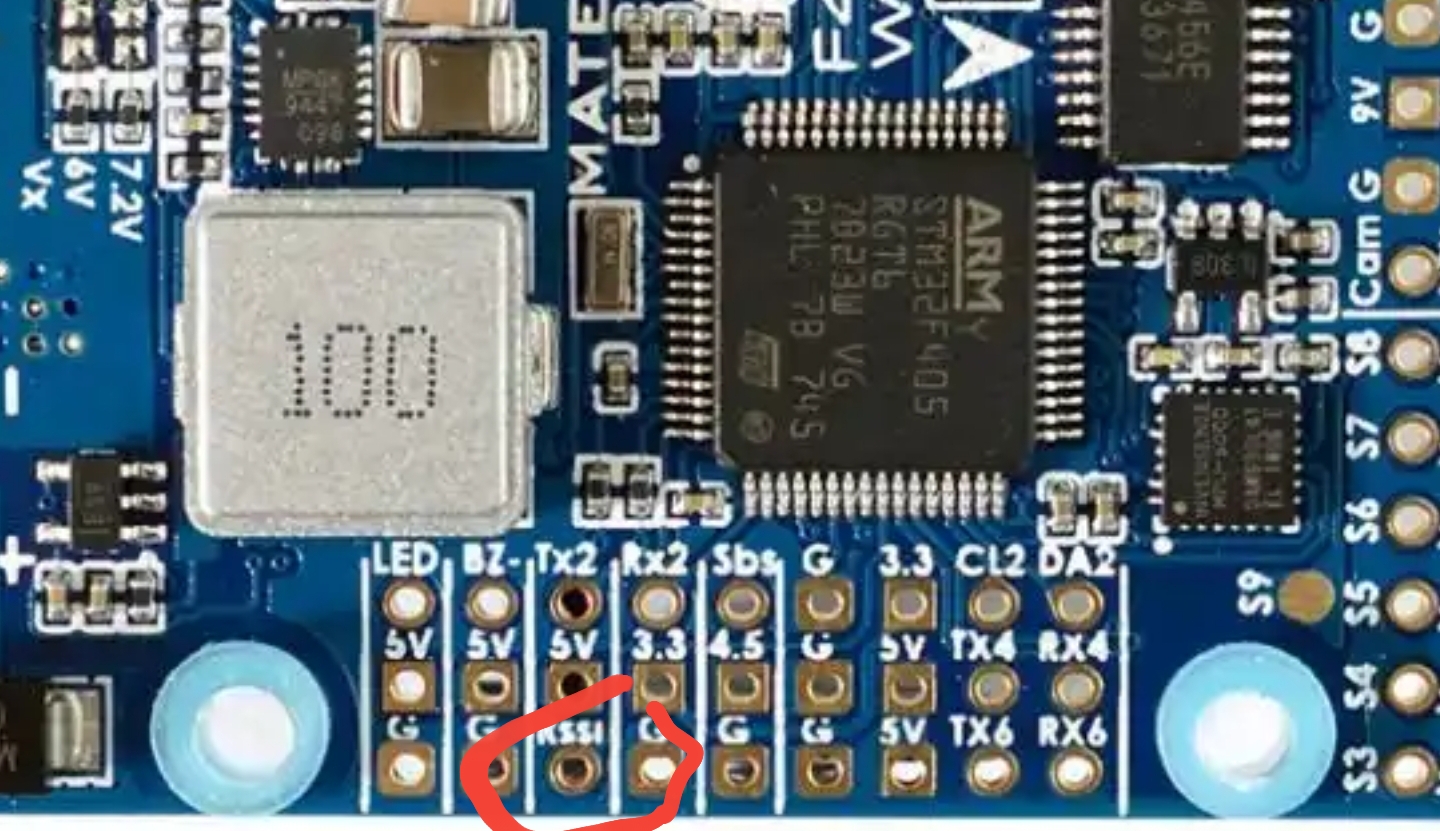

The analogue airspeed sensor goes to the RSSI pad

Screenshot_20181115-192548_Chrome
Screenshot_20181115-192548_Chrome1440×831 671 KB

2

Lol at the analogue airspeed sensor silkscreen :confounded:
