First drone build, Eachine Wizard X220S OmnibusF4 v3 need help with what's next

Help
1

Hi, i have my first drone project to build from parts that were given to me from a friend… and some parts that i bought by myself.

Long story short i have this parts for my drone:

1 DJI F450 Flamewheel

4 DJI 2212 / 920KV brushless motors

4 ESC Mark II / E300

1 Flysky FS-IA10B (With controller)

1 Eachine Wizard X220S FPV Racer RC Drone Customized Omnibus F4 V3 Betaflight 3.0.1 Flight Controller

Reading about it, i discovered that i might need a PDB to connect the battery to it so i can power my FC and the ESC, but then i read that the DJI F450 frame has a built-in PDB cause it has the ESC soldered to it and has a XT60 connector ready for the battery.

Then reading some more… i read about BEC which needs to be connected to the ESC in order to not get break something when i connect the battery.

So please, drone gods, guide me in what i need to do next.

EDIT: Just realized the FC is a Eachine Wizard X220S FPV Racer RC Drone Customized Omnibus F4 V3 Betaflight 3.0.1 Flight Controller and the description on banggood says it’s need a BEC.

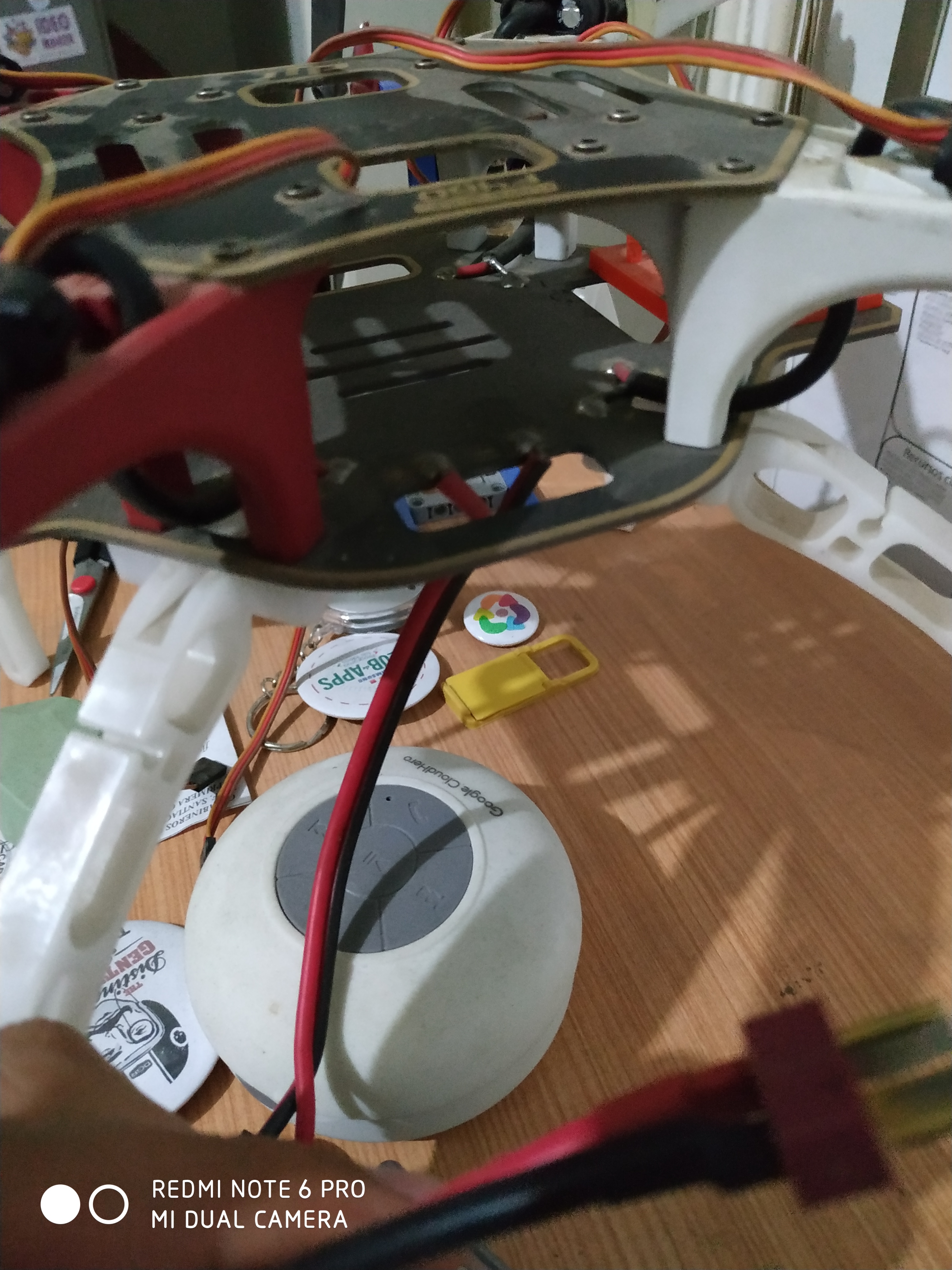

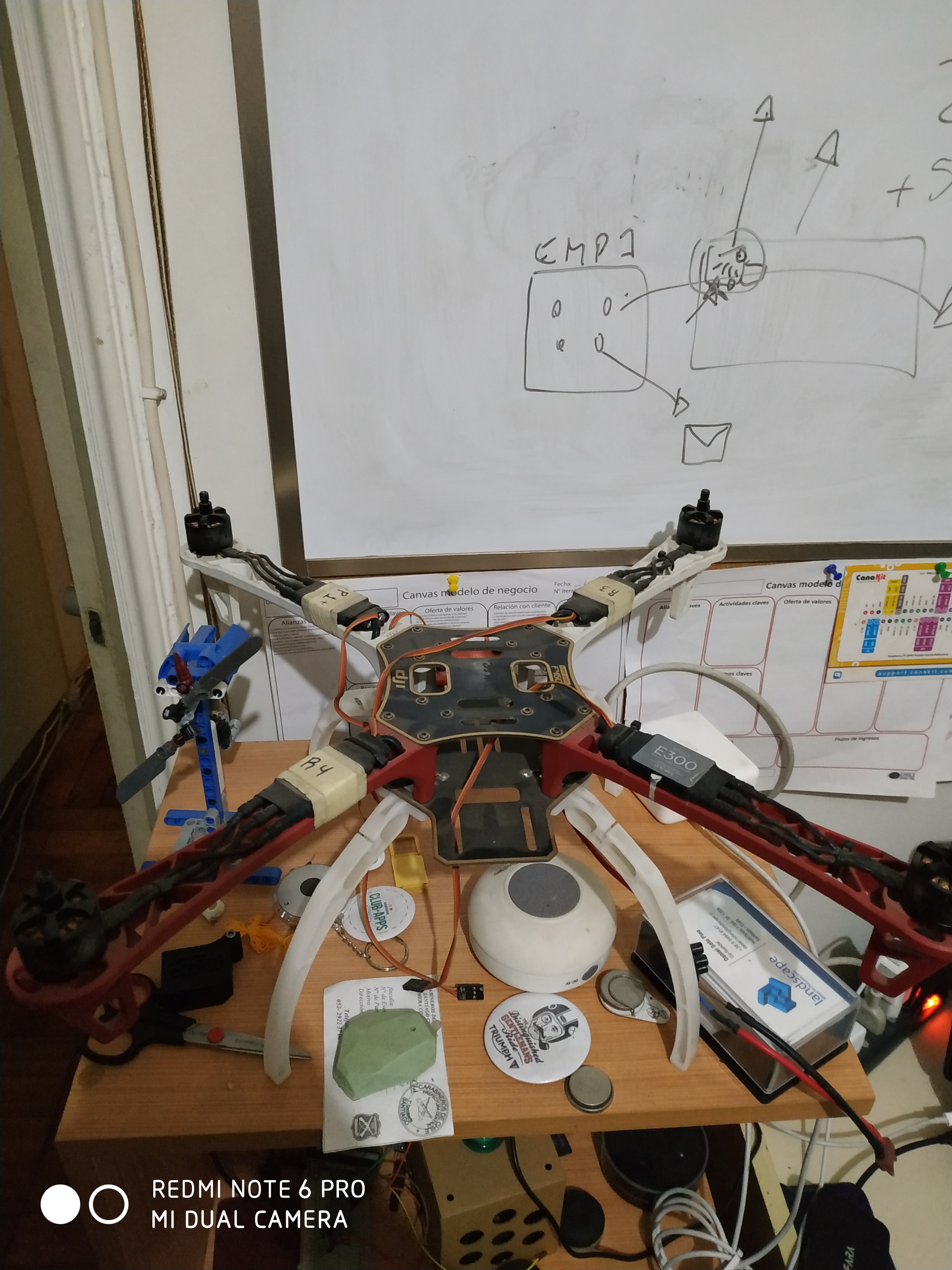

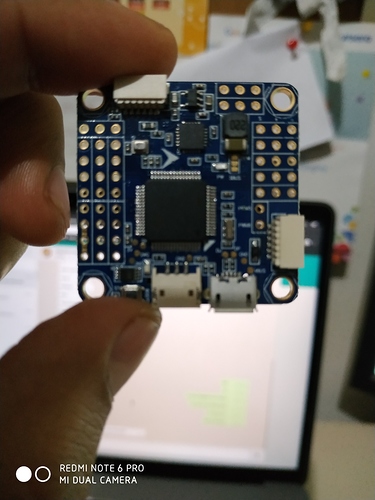

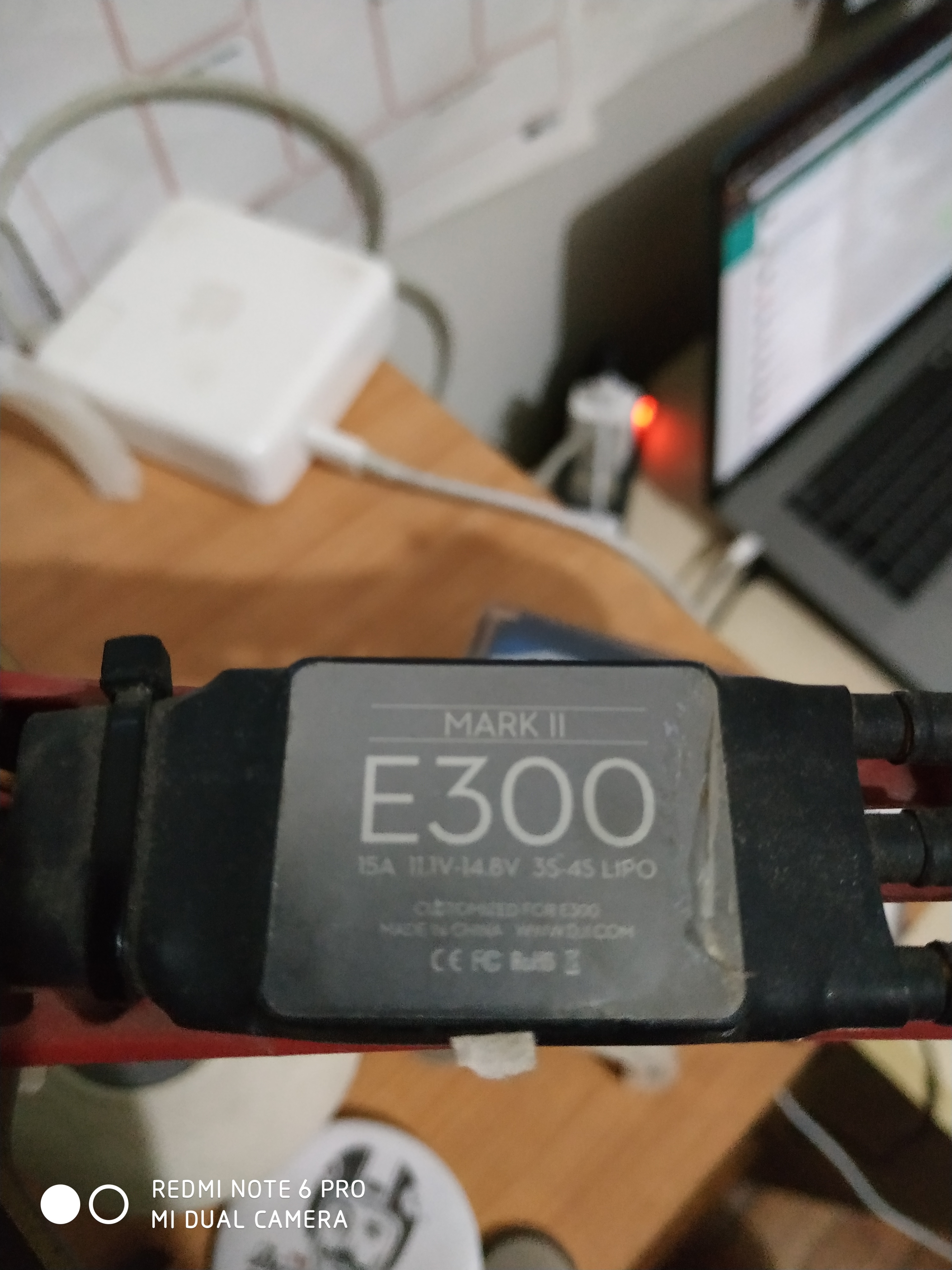

Adding some photos of everything.

IMG_20190403_210428
IMG_20190403_210428.jpg3000×4000 3.28 MB
IMG_20190403_210438
IMG_20190403_210438.jpg3000×4000 3.37 MB
IMG_20190403_210448
IMG_20190403_210448.jpg3000×4000 4.11 MB
IMG_20190403_210555
IMG_20190403_210555.jpg3000×4000 2.88 MB
!

2

I suggest you get a matek PDB with a 5V BEC, then you can power your FC from the PDB, and at the same time have a neat wire routing to power all of your ESC.

Something like this will work well.

1 Like
3

Ok, i bought some stuff from banggood, waiting to arrive and will try.
