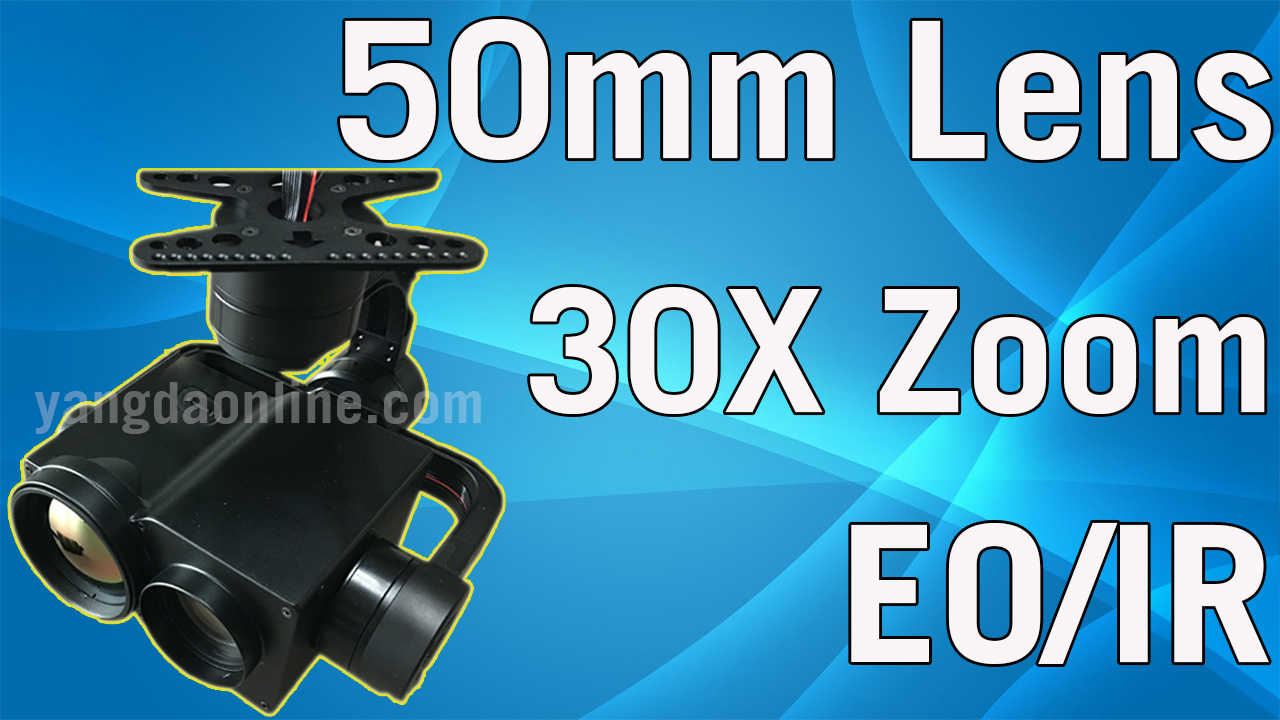

Yangda 30X EO/IR Drone Zoom Camera With 50mm Lens


#1


Eagle Eye-30IE is a 3-axis high stabilized gimbal with EO(electro-optical) and IR(infrared) sensors for drone inspection,surveillance,search and rescue applications.The SONY 30X zoom camera provides 1080P 60FPS full HD video streaming and up to 360X zoom capability,which enable you to see every detail you need in the air even you are far away from the object.While the thermal camera allows you to detect targets in the night or low visibile conditions,and provides you with priceless information when you are carrying out missions like inspecting or monitoring objects.High-performance 3-axis gimbal is developed based on FOC(field-oriented control) technology,which will give you crystal clear video footage.

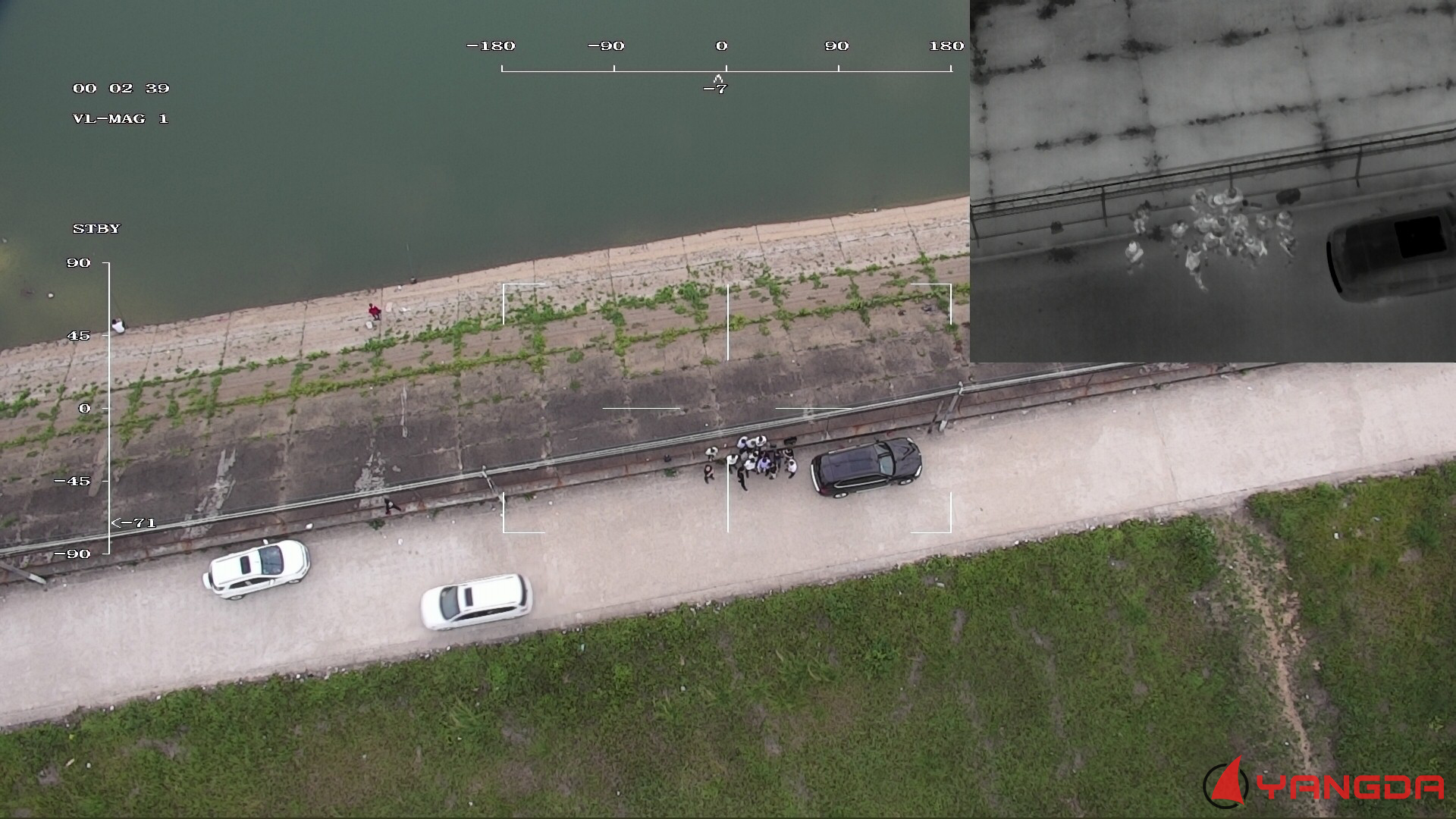

Eagle Eye-30IE is using the most advanced thermal tracking technology,with which you will never lose the object,the tracking function works on daylight sensor too.How it works:zoom in and put the object you want to track in the screen,move the cursor to the object and lock it via controller,and then the camera will track it automatically.

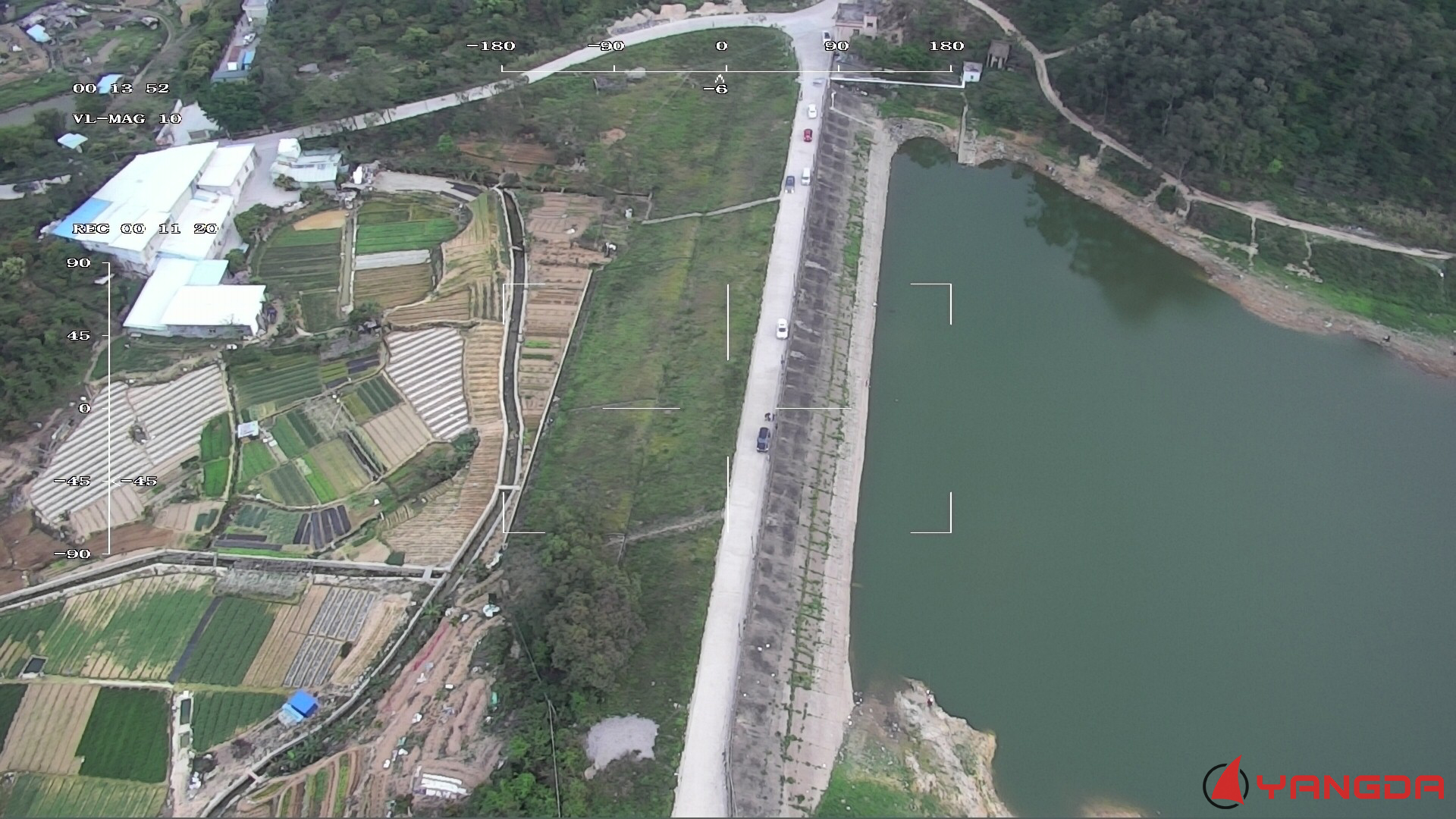

Another big feature for Eagle Eye-30IE is that the gimbal will geotag the video streaming and photos,also gimbal Yaw/Pitch angle,height,time information will be displayed on camera OSD,this is really important when you are conducting missions like rescue and search.

What’s more, with 50mm lens customized, it can get a clear view in high sky.


#2

Looks great!
Could you provide a Link so we can se how much it cost’s?
What are the downsides of the camera?

Luca :slight_smile:


#3

The lens is 25mm in default, 50mm is customized model.See below link for reference:

It’s for some professional application


#4

It’s suit for the professional use. not only the cost, but also the drone requirements. so in my opinion, some con’s including:

  1. it’s duo sensors, bigger and heavier than normal camera, need professional UAV
  2. some functions, such as PMW, it’s digital signal for autopilot and ground station, need the technical engineer assistance when using.
    3.cost is little higher consider the function, maybe the company or government institution will buy it for some special application.
  3. The thermal camera is only for the human being inspection. and have 3 temperatures. lowest, center and highest, not full range

in a words, it’s a industry products, not consumer goods,but represent the latest technology.
