Hi guys! I purchased a gimbal control board and am trying to set it up with my SPF3 EVO and a power distribution board. I want to use the servo tilt features and forward that to the gimbal control board. I tried soldering the gimbal control board to the 12v and gnd but when i connect a battery, it s…

Hi John @John_Ninja Thanks for the diagram Are you using a 3S or 4S battery? if 3S (11.1v nominal) then do not use the 12v BEC output, it will only give you about 10v and the linear regulator on the PDB will not provide any supply suppression. extract from MATEK site >>> [image] Most importantl…

POWER ISSUE Connect Gimbal Control Board (Basecam Clone) to PDB?

Help

John_Ninja 6 February 2017 04:55 3

Thanks!

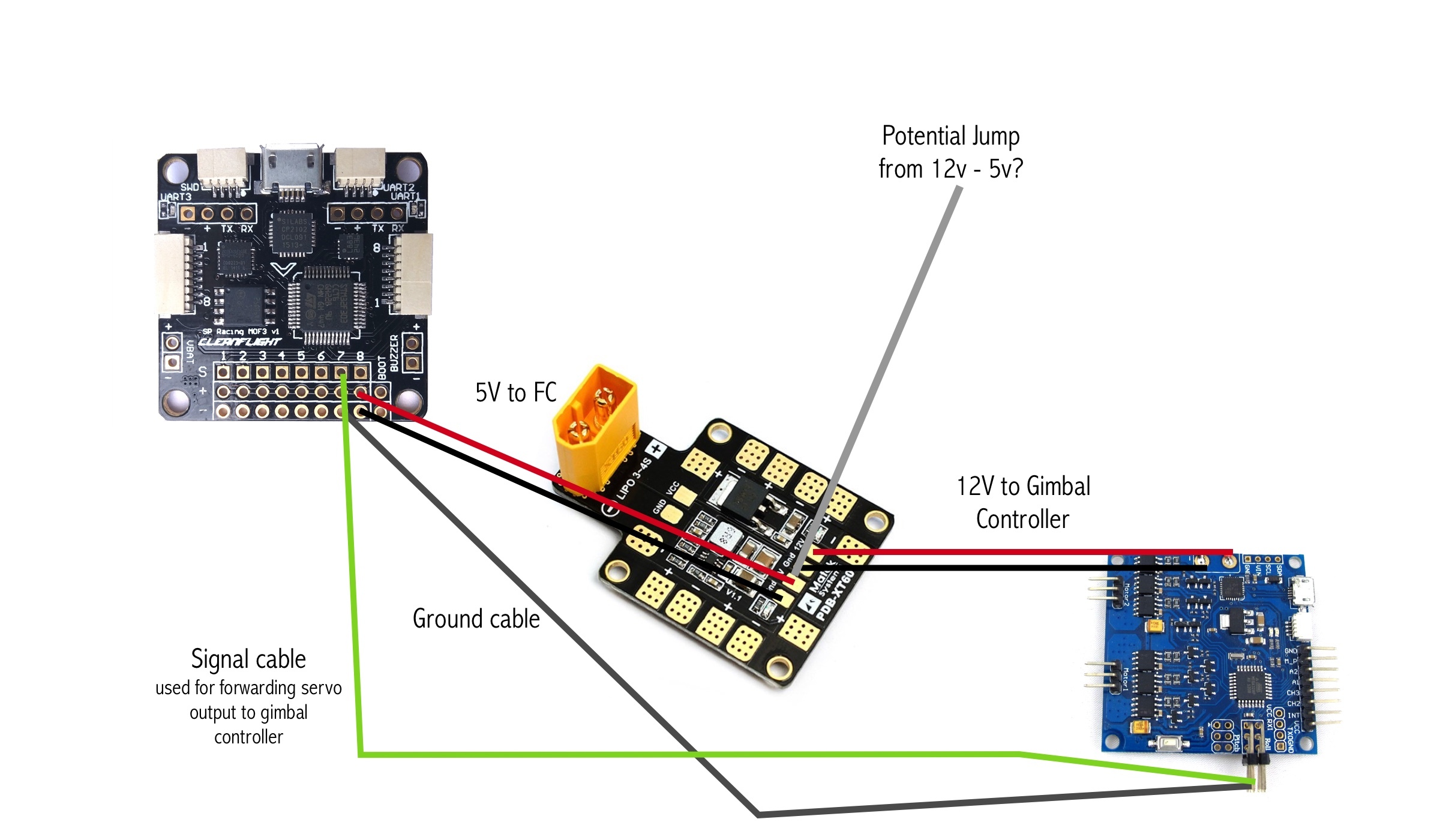

Here is a diagram. I will send a real picture tomorrow.
Hope this helps!

John
