Connection problem between SBUS and Gimbal

multirotor

#1

I can not connect my card BF3 and both.indir


How to Connect Gimbal and Receiver ?
I do not know that.


#2

Please tell us a bit more about your Problem…
Did this work at some point?
What have you tried so far?
Please provide a link of your equipment so it is easier for us to solve your Problem.
Since your Gimbal is just a servo i would simply plug the servos into the Channels on your Receiver which should control the Gimbal.
I think you can also connect it somehow to your FC.


#5

How to Connect Gimbal and Receiver
I do not know that.


#6

Please answer my Questions…
If you dont do that im not able to help you…

Luca :slight_smile:


#7

I have not done anything until now. Because I do not know how to connect a gimbal.


#8
  • What FC are you using?

  • What Receiver are you using?

  • What gimbal are you using?

Any links to the above would also help


#9

20180530_135539

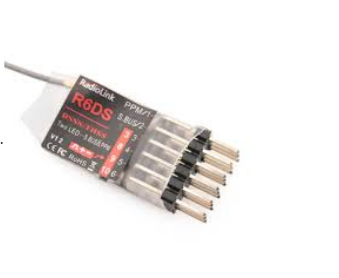

Receiver Radiolink AT10


#10

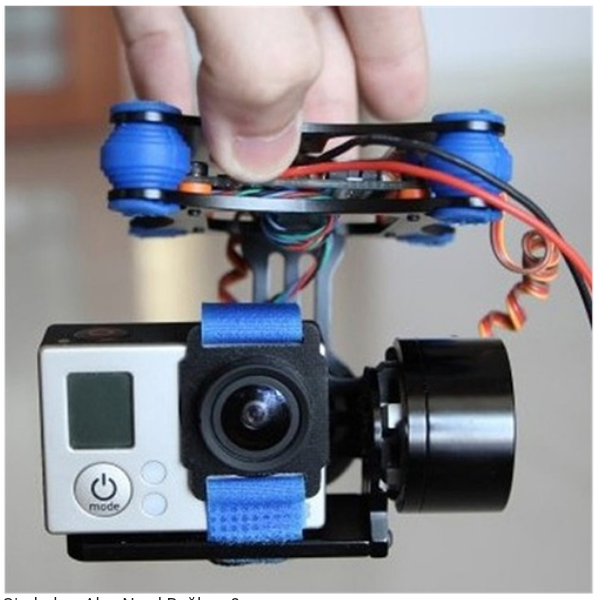

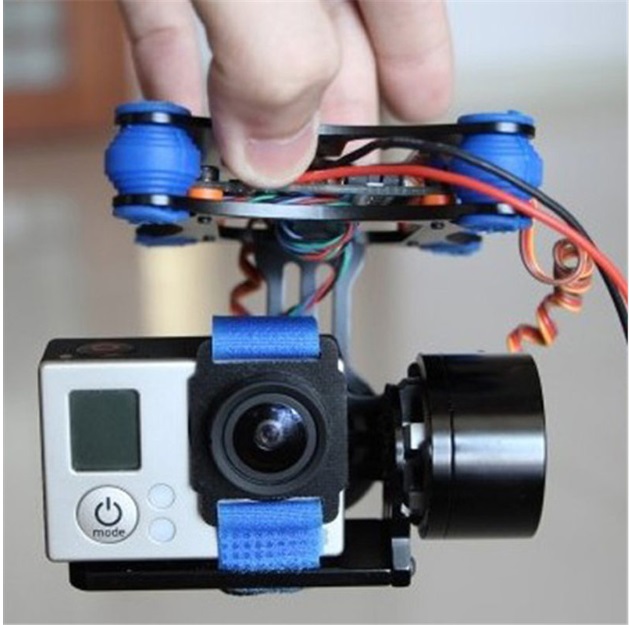

this gimbal


#11

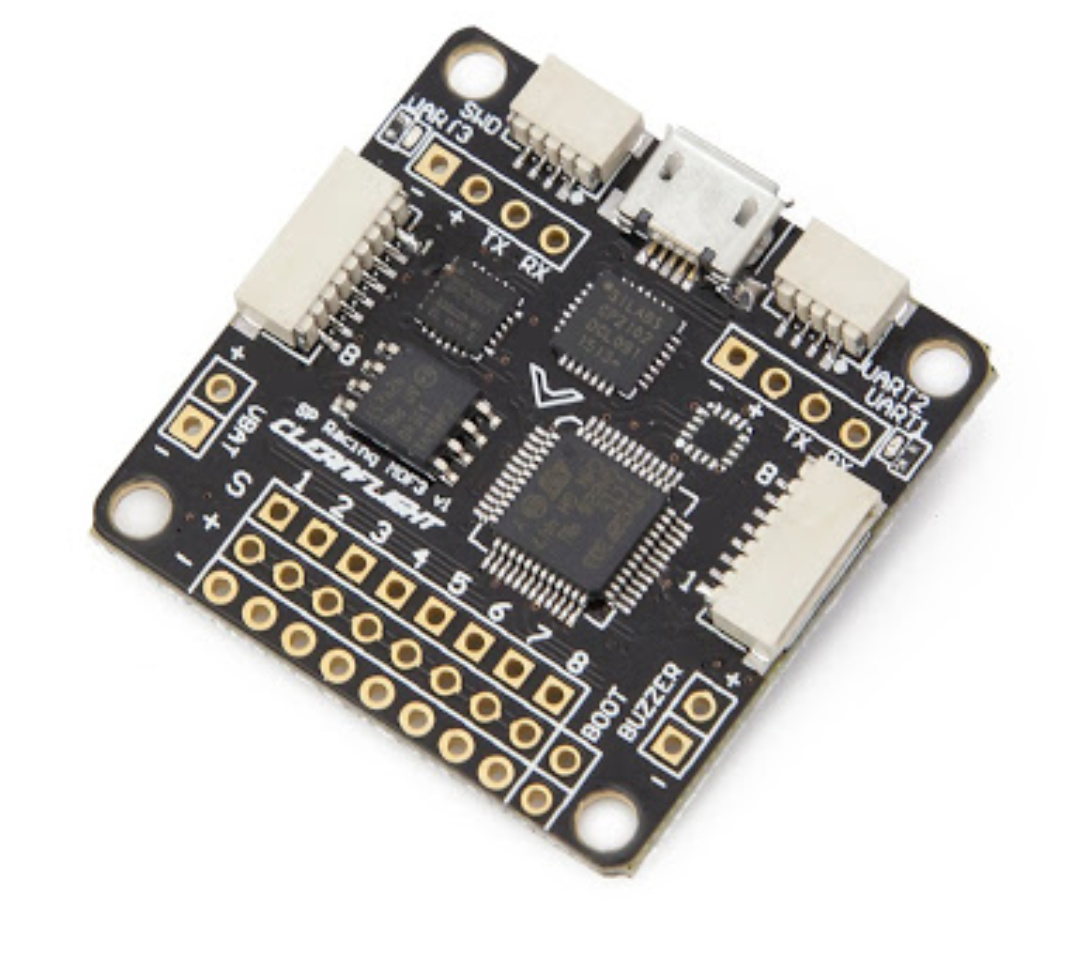

I have the SP3 card.


#12

What is the connection diagram between these three?


#13

what gimbal is this?

With out knowing the model. Its much harder trying to work out the connections


#14

how the connection between these three is done.
AliExpress sells it == RTF FPV Drone Gopro3 Hafif 2-AXIS Fırçasız Gimbal Kurulu Sensörü ile Ücretsiz Hata Ayıklama


#15

Please switch it to english and then copy and paste it :slight_smile:
Or copy the Link so we can look up by ourself


#16

RTF FPV Drone Gopro3 Hafif 2-AXIS Fırçasız Gimbal Kurulu Sensörü ile Ücretsiz Hata Ayıklama
http://s.aliexpress.com/va2mu2mm?fromSns=Copy to Clipboard


#17

OK after a google and Youtube search try this…

Connect the Red and Black power leads to a 3S power source.

You can attach the Pitch and Roll pins on the gimbal to the FC motors port 6 will probably work ok.
Then in Betaflight set up servos on that motor port.

Below are some video links that may help you.



#18

I have a Quad 210 drone. Like I said, I have an SP3 card. Radiolink receiver. Can you give me a connection diagram.


#19

I’ve given you instructions on a best guess of how you should connect up and link to video’s where you can carry out some further research.


#20

thank you so much… :gülümseme:
