QR X350,Devo 7, iLook+, G-D3 gimbal, Wire connections, Help please!

multirotor

#1

Hi folks,
I have recently joined your forum having just taken up the wonderful hobby of drone flying. I have mastered the flying side so have invested in the purchase of my iLook+ camera and G-3D gimbal. Both items have arrived brand new in their boxes, including wires with what appears to be idiot proof plugs. Try as I might I just cannot figure out how they all connect up. This is not helped by the terminology being different between the gimbal and camera instructions.
I would really appreciate some help with sorting this out, if any one out there has the same kit, or knowledge of how it connects.
Here’s hoping
Cheers steve


#2

Hi and welcome to the forms and the drone hobby :thumbsup:

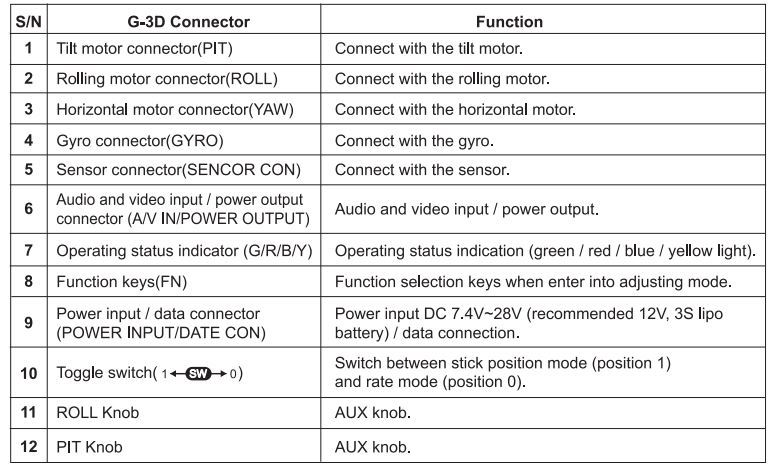

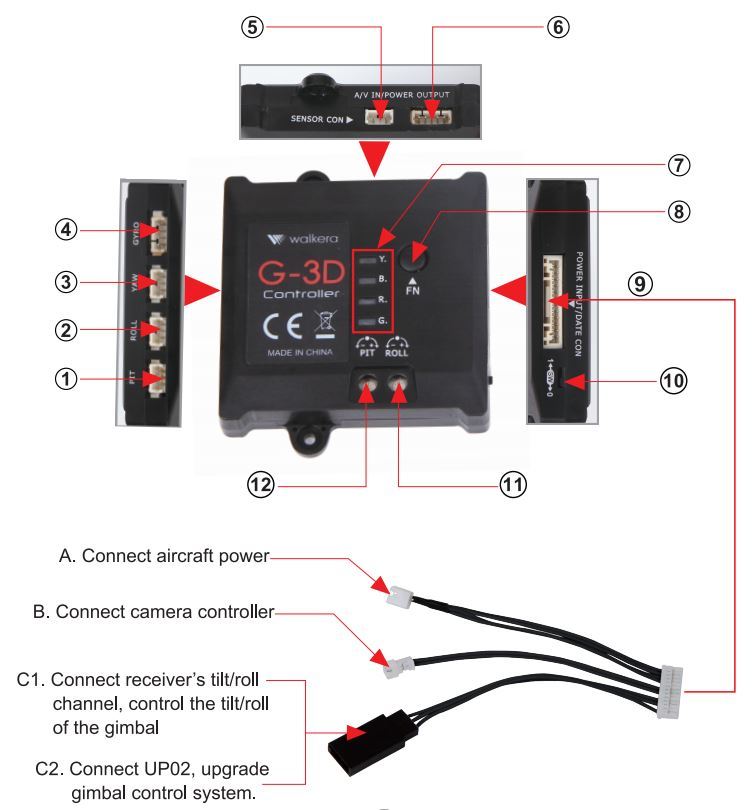

The image below will show you all teh connectors for the G3D gimbal, but I have also just updated the quickstart manual for the gimbal over on our site - Walkera G3D gimbal manual


If you have any questions just let me know and I will try to help. But we dont sell this gimbal anymore but they are all similar so I might be able to help :smile:
