P, I (and D) gains in a nutshell


#1

I have been reading up on what I will need to do for setting up my APM. One of the confusing aspects was the PID settings. I have con across these before from using my 3D printer but really had very little idea as to what they really do and how they effect the machine.

I found this site: http://www.flitetest.com/articles/p-i-and-sometimes-d-gains-in-a-nutshell which has a great guide as to how the PID setting work on a rotary wing machine. Thought I would pop it up here for others who may not have seen it :slight_smile:


Arducopter Autotune Tips - how to get rock solid stabilisation with your multirotor
Runner 250 FPV Racing Quadcopter Quickstart Guide
#2

Thats a great link, thanks for sharing :thumbsup: Explains is all in a very clear manner.

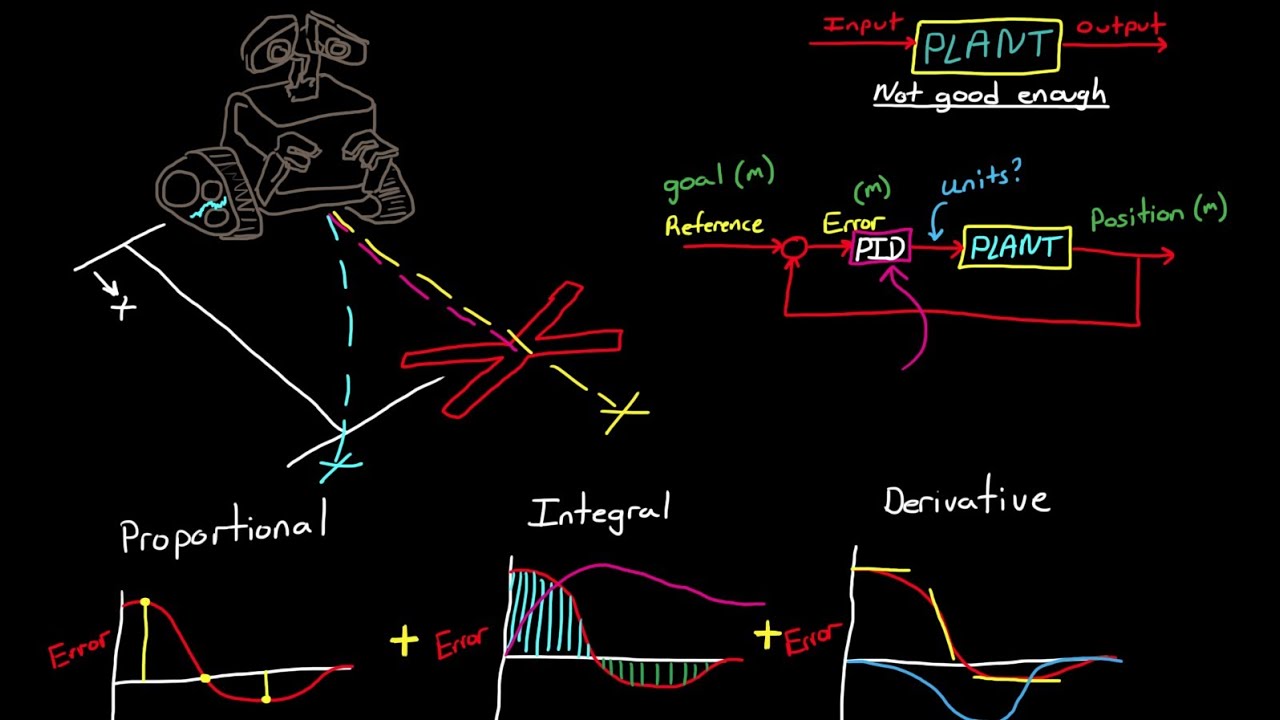

Also I remember wathcing this video which also explains PID for more general control applications. Sometimes I prefer watching a video than reading something :stuck_out_tongue:

If you are interested in understanding more about control systems Brian Douglas has loads more great lectures which go into details of many important aspects of control.
