New brand radio-10channel transmitter AT9 from RadioLink


#1

First user-defined radio for multirotor
High quality as supper brand
Auto data back
Unbelievable price

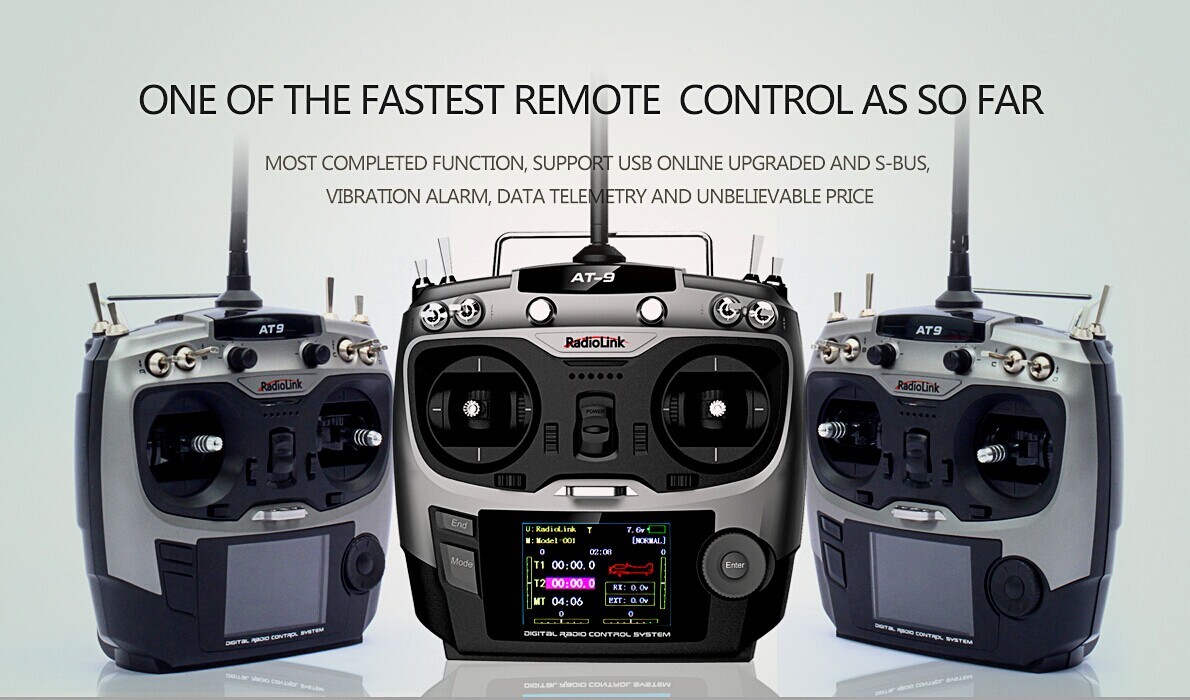

AT9 2.4GHz 9CH remote control system


Feature
1.Fast response, 3ms only, which is much less than the average 20ms even 9 channels it acts synchronously.
2.Support English & Chinese menu, including helicopter 8 swash plate modes, fixed wing 2 airfoils 3 rears, gliders 4 airfoils and 2 rears. Freely operating any styled aircraft.
3.Programmable mix control. Basic menu, advanced menu, graph view for verities of throttle and servo curve.
4.DSSS spread spectrum mode supplies better performance in anti-interference.
5.Adopt two-transmission technology of RadioLink AT10 10CH radio control, support signal strength, receiver voltage monitored, and extending battery voltage,OSD, GPS etc.
6.4096 section precision, 0.25us per section, servo anti-shake rudder.
7.2.8 inches 16 colors LCD resolution 240320 distinct and magnificent.
8.Actual measurement: ground 600 meters, air 900 meters.
9.Vibration alarm.
10.Support USB online upgrade.
11.Four VR switches, three three-way switches, four two-way switches, a reset trainer switch. Support multiple aerial control mode and PTZ control.
12.R9D support and compatible with FUTABA S-BUS. R9D can output SBUS and PWM double signals simultaneously. R6D can output PPM and PWM double signals simultaneously. No matter for 3 axis control system or aircraft controlling S-BUS, AT9 is perfectly used. No need for too many cables and too much weight.
13.“AIRCRAFE” model type, navigation menu.
14.Mini receiver: 41
23*14mm.

Specification
1.Size: 183100193mm
2.Weight: 0.88kg
3.Frequency: 2.4GHz ISM band (2400MHz to 2485MHz)
4.Modulation mode: QPSK
5.Channel bandwidth: 5.0 MHz
6.Spread spectrum: DSSS&FHSS
7.Adjacent channel rejection: >58dbm
8.Transmitter power: <100mW (20dbm )
9.Operating current: <105mA
10.Operating voltage: 7.4~15V
11.Control distance: more than 900 meters ground, 1500 meters air
12.Channel: 10 channels, 5-10 channels are customized
13.Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings and glider, five flying models
14.Simulator model: under the simulator model the transmitter action turn off, change to power saving model
15.Screen: 3.5 inches 16 colorful screen, 320*480 pixels
