Makezine Drone Special


#1

Make Volume 37 has a special on drones, which seems like its worth a read, its all about maker drones, and has loads of articles on how to build your own drone, also some FPV information etc… You can find out more information here, or read a sample here

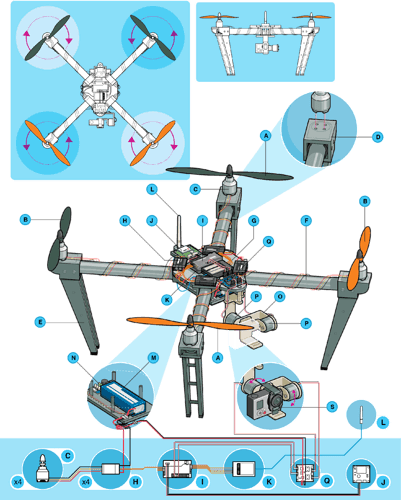

There are a bunch of cool articles and illisturations such as the anatomy of a drone as shown below

A. STANDARD PROP The same “tractor” propeller used on standard front-engine R/C airplanes.

B. “PUSHER” PROP These contra-rotating props exactly cancel out motor torques during stationary level flight. Opposite pitch gives downdraft.

C. MOTOR Usually a brushless electric “outrunner” type, which is more efficient, more reliable, and quieter than a brushed motor.

D. MOTOR MOUNT Sometimes built into combination fittings with landing struts.

E. LANDING GEAR Designs that need high ground clearance may adopt helicopter-style skids mounted directly to the body, while designs with no hanging payload may omit landing gear altogether.

F. BOOM Shorter booms increase maneuverability, while longer booms increase stability. Booms must be tough to hold up in a crash while interfering with prop downdraft as little as possible.

G. MAIN BODY Central “hub” from which booms radiate like spokes on a wheel. Houses battery, avionics, cameras, and sensors.

H. ELECTRONIC SPEED CONTROLLER (ESC) Converts DC battery power into 3-phase AC for driving brushless motors.

I. FLIGHT CONTROLLER Interprets input from receiver, GPS module, battery monitor, and onboard sensors. Regulates motor speeds, via ESCs, to provide steering, as well as triggering cameras or other payloads. Controls autopilot and other autonomous functions.

J. GPS MODULE Often combines GPS receiver and magnetometer to provide latitude, longitude, elevation, and compass heading from a single device.

K. RECEIVER Often a standard R/C radio receiver unit. The minimum number of channels needed to control a quad is 4, but 5 is usually recommended.

L. ANTENNA Depending on your receiver, may be a loose wire whip or helical “rubber ducky” type.

M. BATTERY Lithium polymer (LiPo) batteries offer the best combination of energy density, power density, and lifetime on the market.

N. BATTERY MONITOR Provides in-flight power level monitoring to flight controller.

O. GIMBAL Pivoting mount that rotates about 1, 2, or 3 axes to provide stabilization and pointing of cameras or other sensors.

P. GIMBAL MOTOR Brushless DC motors can be used for direct-drive angular positioning, too, which requires specially-wound coils and dedicated control circuitry that have only recently become commercially available.

Q. GIMBAL CONTROLLER Allows control of direct-drive brushless gimbal motors as if they were standard hobby servos.

R. CAMERA GoPro or other compact HD video unit with onboard storage. Real-time streaming is possible with special equipment.
