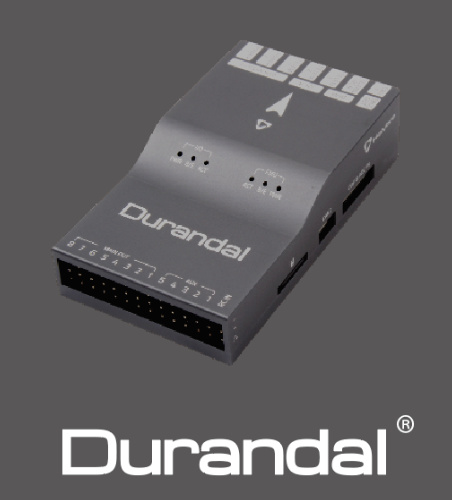

HolyBro Durandal Autopilot ⚔

I am a big fan of the Pixhawk 4 series autopilots from Holybro as they represent the ideal balance between quality and price if you dont want to pay for tripple redundancy (like on the Cube autopilots (which are also great BTW)).


But holybro are working on a new super powerfull autopilot based of the STM32 H7 MCU, so it will have pleanty of horsepower to do loads of cool things with. Full specs below:


  • Processor
    • 32-bit STM32H743 main processor
    • 400Mhz / 1MB RAM / 2MB Flash
    • 32-bit co-processor
  • Sensors
    • InvenSense ICM20689 accelerometer / gyroscope
    • Bosch BMI088 accelerometer / gyroscope
    • MS5611 barometer
    • IST8310 magnetometer
  • Power
    • Operating power: 4.9~5.5V (6v max input)
    • USB Input: 4.75~5.25V
    • High-power servo rail, up to 36V (servo rail does not power the flight controller)
    • Dual voltage and current monitor inputs
  • Interfaces
    • USB-C
    • 8 IOMCU PWM servo outputs
    • 5 FMU PWM outputs (D-Shot capable)
    • 6 dedicated PWM/Capture inputs on FMU
    • S.Bus servo output
    • R/C inputs for CPPM and S.Bus
    • Analogue / PWM RSSI input
    • 5x general purpose serial ports
    • 3x I2C ports
    • 4x SPI buses enabled
    • 2x CAN Bus ports
    • 2x additional analog inputs
  • Other
  • Weight: 64g
  • Dimensions: 80mm x 45mm x 20.5mm
  • Operating temperature: -40 ~ 85°c(claimed)
