Emax TinyHawkS, now supports 2S 🔥

Blog
1

Originally published at: https://blog.dronetrest.com/tinyhawk-s/

Looks like Emax have been at it again and improving on the already very good and popular TinyHawk now releasing the TinyHawkS. In black, cause everything looks better in black. And best of all it is the same price as the original. 👍

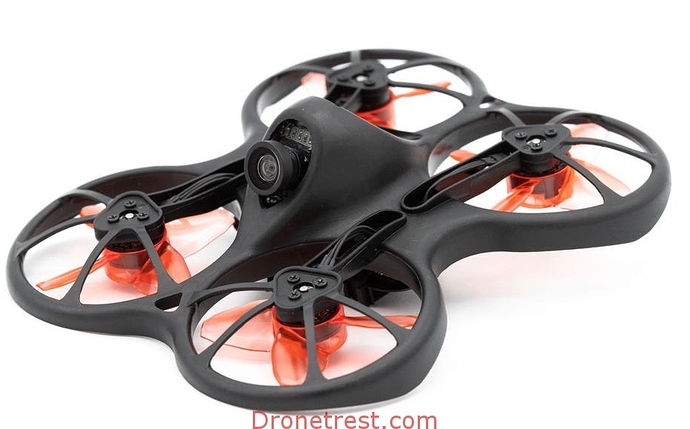

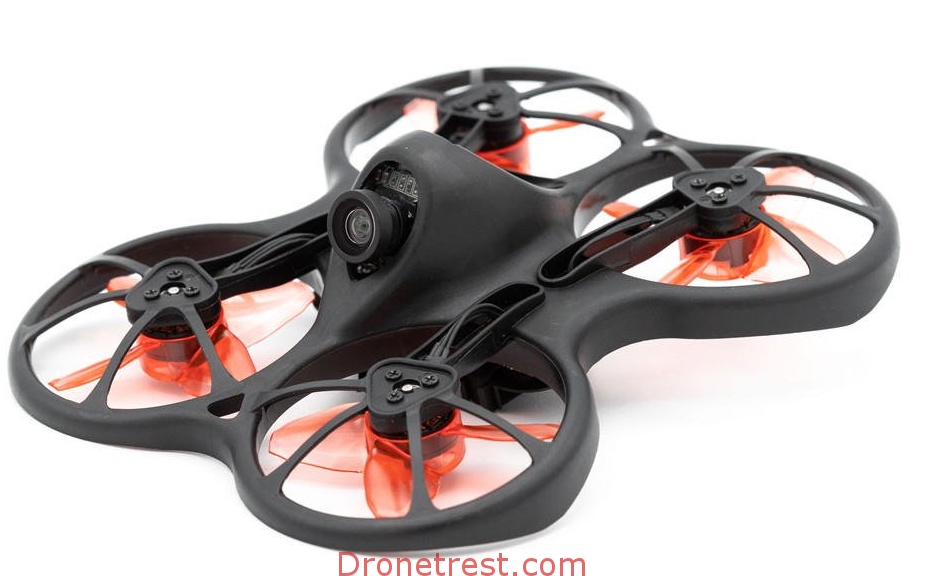

EmaxTinyHawk2S
EmaxTinyHawk2S925×576 103 KB

Where to Buy:

So lets jump right in and have a look at some of the new features.

  • Newly engineered brushless motor that is both smaller to reduce weight and increase the power output of the entire aircraft.
  • Utilising this this new power system, up to 20% more flight time as well as the ability to accept the higher 2S voltage.
  • A dual slot mount, the camera will be able to adjust its angle.
  • Newly reinforced struts.
  • Moved away from the AIO flight controller design on the first tinyhawk. The S now uses a Matek F411 FC and a separate 4in1 ESC, VTX/Camera.

Specifications:

  • Frame: the same but stronger.
  • FC: MATEKF411 F4
  • ESC: 5A 4in1
  • Lipo: 1S/2S with pre-installed capacitor XT30.
  • Different PID profiles for 1S and 2S.
  • Motors: H0802 15500Kv
  • Props: Avan TH Tinyhawk – with turtle mode improvements.
  • Rx: Emax Tiny Rx ( Compatible with Frsky D8 / D16 ).
  • VTX: 37Ch 25mW.
  • Camera: 600TVL CMOS.
  • Weight: 30g ( Without Lipo ).
  • Maximum size: 125mm

So what do you get for your money ?

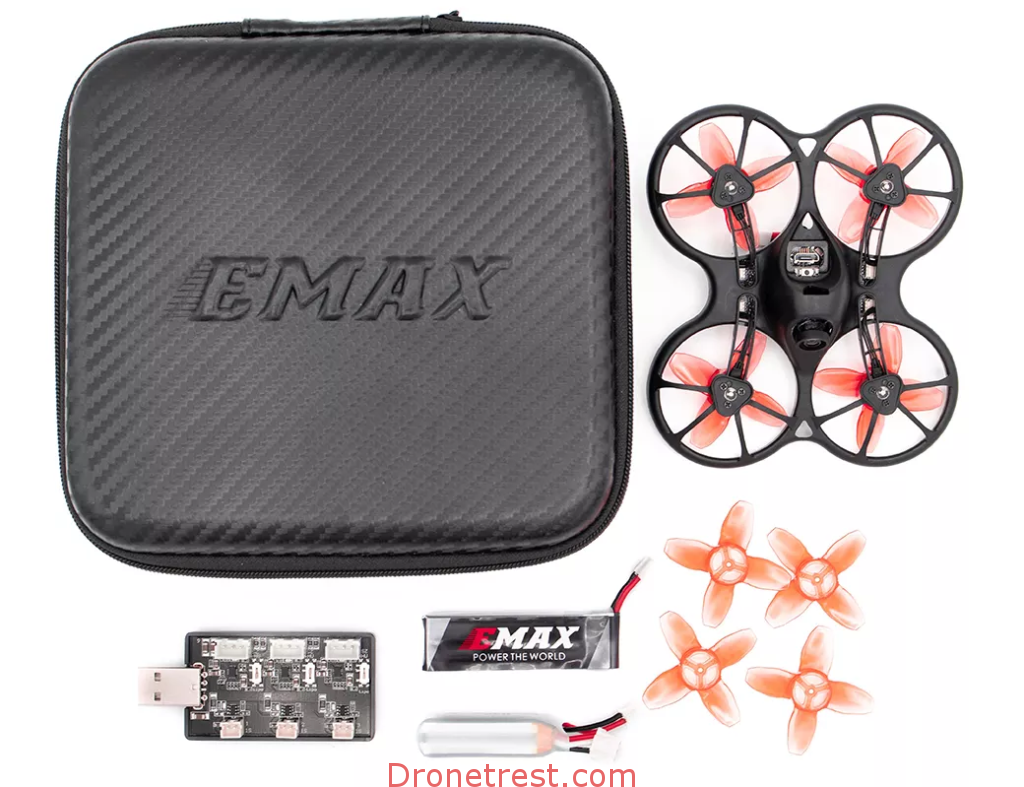

TinyHawk_Box
TinyHawk_Box1024×787 704 KB
  • 1x Emax TinyHawkS Drone.
  • 1x Emax Case.
  • 1x 1S 450mAh Lipo.
  • 1x 2S 300mAh Lipo.
  • 4x Spare Props.
  • 1x USB charger.

Summary

Now I haven’t had a go on one of these yet but if there any thing like there predecessor they will be great fun to fly. 1S maybe better for indoor flying around your house keeping the speed down a little making it easier to handle dodging your kittens.
Then swapping to the 2S for some outdoor freestyling and racing.
With all the Emax development and improvements that have been put into including a working turtle mode, as there is nothing worse then having to walk out to turn over your quad.
The TinyHawkS should be fun for anyone and even a good start point into the hobby.
Oh these things love hair, So try not to get them stuck in anyone’s hair or be prepared for a death stare.

1 Like
2

I really like the look of this little guy! Although I’ve heard that the camera isn’t great. However, the camera has a plug on it so it’s easy to swap out. Any suggestions on a good replacement?

3

The caddx Eos is one of the better nano cameras as it looks great and is cheap, but I think the new runcam nano 2 is also pretty good, maybe better.l, but have not used one myself to know for sure. But I also think the upcoming Predator v4 nano will be the best as it will apparently has the same sensor as the mini camera… but in a micro form factor so of that’s the case it will arguably be the best nano camera.

1 Like
