No control read-outs in cleanflight but RX on NAZE32 r6 is connected to Taranis D9X+

jdevroed · 10 August 2017 20:08

Hey all,

Have a weird problem and would appreciate some help.
Bought a Dyatone Tyrant 215 (Naze32 r6) and have a problem reading out the stick controls from my Taranis…

A list of settings I played around with but after hours and hours of reading I still think this should be it…yet I cannot see it in Cleanflight.

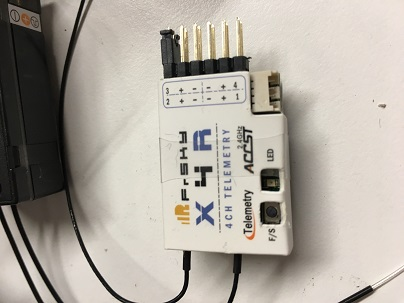

I have a FrSky X4R (white - PPM) and X6R (SBUS) and both behave the same, so I do not think that they are the cause…
I have SerialRX port enabled while trying with both receivers.

They both bind/reconnect smoothly.

In the case of the X6R I set Configuration to SBUS twice

But…and this has worked couple of days ago, now, when clicking on the receiver tab, all control lines immediately fall to zero, and I cannot preview my controls behavior

Anyone a hint about what I am doing wrong?

Thx
Jeroen

jdevroed · 10 August 2017 20:16

Some more pictures …

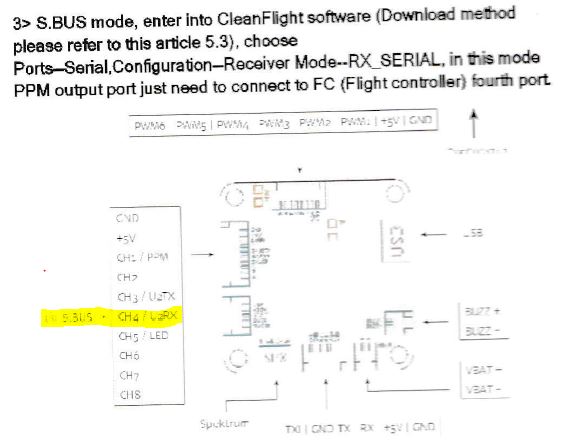

this is the excerpt from the Tyrant’s manual showing I need to use the 4th pin after Gnv and +5 on the Naze32

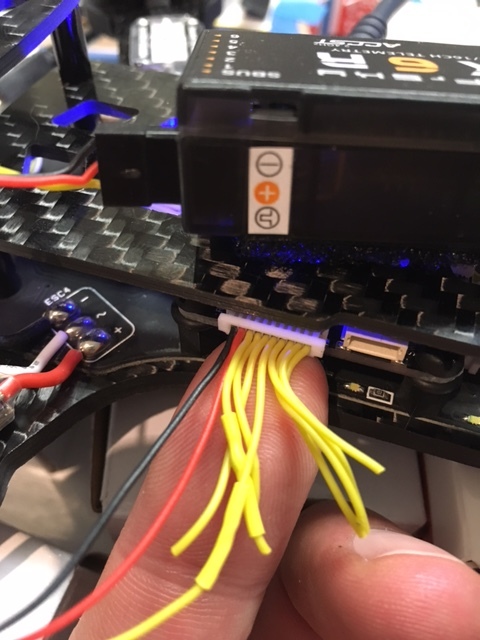

And this pic show my connection

jdevroed · 10 August 2017 20:32

Here’s my dump…# dump

version

BetaFlight/NAZE 3.0.1 Oct 18 2016 / 10:19:37 (48b7b4f)

name

name Jdev-Tyrant

mixer

mixer QUADX

mmix reset

servo

servo 0 1000 2000 1500 90 90 100 -1
servo 1 1000 2000 1500 90 90 100 -1
servo 2 1000 2000 1500 90 90 100 -1
servo 3 1000 2000 1500 90 90 100 -1
servo 4 1000 2000 1500 90 90 100 -1
servo 5 1000 2000 1500 90 90 100 -1
servo 6 1000 2000 1500 90 90 100 -1
servo 7 1000 2000 1500 90 90 100 -1

servo mix

smix reset

feature

feature -RX_PPM
feature -VBAT
feature -INFLIGHT_ACC_CAL
feature -RX_SERIAL
feature -MOTOR_STOP
feature -SERVO_TILT
feature -SOFTSERIAL
feature -GPS
feature -FAILSAFE
feature -SONAR
feature -TELEMETRY
feature -CURRENT_METER
feature -3D
feature -RX_PARALLEL_PWM
feature -RX_MSP
feature -RSSI_ADC
feature -LED_STRIP
feature -DISPLAY
feature -OSD
feature -BLACKBOX
feature -CHANNEL_FORWARDING
feature -TRANSPONDER
feature -AIRMODE
feature VBAT
feature RX_SERIAL
feature MOTOR_STOP
feature FAILSAFE
feature TELEMETRY

beeper

beeper GYRO_CALIBRATED
beeper RX_LOST
beeper RX_LOST_LANDING
beeper DISARMING
beeper ARMING
beeper ARMING_GPS_FIX
beeper BAT_CRIT_LOW
beeper BAT_LOW
beeper GPS_STATUS
beeper RX_SET
beeper ACC_CALIBRATION
beeper ACC_CALIBRATION_FAIL
beeper READY_BEEP
beeper MULTI_BEEPS
beeper DISARM_REPEAT
beeper ARMED
beeper SYSTEM_INIT
beeper ON_USB

map

map TAER1234

serial

serial 0 1 115200 57600 0 115200
serial 1 64 115200 57600 0 115200

led

led 0 15,15:ES:AI:0
led 1 15,8:E:FW:0
led 2 15,7:E:FW:0
led 3 15,0:NE:AI:0
led 4 8,0:N:F:0
led 5 7,0:N:F:0
led 6 0,0:NW:AI:0
led 7 0,7:W:FW:0
led 8 0,8:W:FW:0
led 9 0,15:SW:AI:0
led 10 7,15:S:FW:0
led 11 8,15:S:FW:0
led 12 7,7:U:FW:0
led 13 8,7:U:FW:0
led 14 7,8:D:FW:0
led 15 8,8:D:FW:0
led 16 8,9::R:3
led 17 9,10::R:3
led 18 10,11::R:3
led 19 10,12::R:3
led 20 9,13::R:3
led 21 8,14::R:3
led 22 7,14::R:3
led 23 6,13::R:3
led 24 5,12::R:3
led 25 5,11::R:3
led 26 6,10::R:3
led 27 7,9::R:3
led 28 0,0::C:0
led 29 0,0::C:0
led 30 0,0::C:0
led 31 0,0::C:0

color

color 0 0,0,0
color 1 0,255,255
color 2 0,0,255
color 3 30,0,255
color 4 60,0,255
color 5 90,0,255
color 6 120,0,255
color 7 150,0,255
color 8 180,0,255
color 9 210,0,255
color 10 240,0,255
color 11 270,0,255
color 12 300,0,255
color 13 330,0,255
color 14 0,0,0
color 15 0,0,0

mode_color

mode_color 0 0 1
mode_color 0 1 11
mode_color 0 2 2
mode_color 0 3 13
mode_color 0 4 10
mode_color 0 5 3
mode_color 1 0 5
mode_color 1 1 11
mode_color 1 2 3
mode_color 1 3 13
mode_color 1 4 10
mode_color 1 5 3
mode_color 2 0 10
mode_color 2 1 11
mode_color 2 2 4
mode_color 2 3 13
mode_color 2 4 10
mode_color 2 5 3
mode_color 3 0 8
mode_color 3 1 11
mode_color 3 2 4
mode_color 3 3 13
mode_color 3 4 10
mode_color 3 5 3
mode_color 4 0 7
mode_color 4 1 11
mode_color 4 2 3
mode_color 4 3 13
mode_color 4 4 10
mode_color 4 5 3
mode_color 5 0 9
mode_color 5 1 11
mode_color 5 2 2
mode_color 5 3 13
mode_color 5 4 10
mode_color 5 5 3
mode_color 6 0 6
mode_color 6 1 10
mode_color 6 2 1
mode_color 6 3 0
mode_color 6 4 0
mode_color 6 5 2
mode_color 6 6 3
mode_color 6 7 6
mode_color 6 8 0
mode_color 6 9 0
mode_color 6 10 0

aux

aux 0 12 6 1725 2100
aux 1 0 0 900 900
aux 2 0 0 900 900
aux 3 0 0 900 900
aux 4 0 0 900 900
aux 5 0 0 900 900
aux 6 0 0 900 900
aux 7 0 0 900 900
aux 8 0 0 900 900
aux 9 0 0 900 900
aux 10 0 0 900 900
aux 11 0 0 900 900
aux 12 0 0 900 900
aux 13 0 0 900 900
aux 14 0 0 900 900
aux 15 0 0 900 900
aux 16 0 0 900 900
aux 17 0 0 900 900
aux 18 0 0 900 900
aux 19 0 0 900 900

adjrange

adjrange 0 0 0 900 900 0 0
adjrange 1 0 0 900 900 0 0
adjrange 2 0 0 900 900 0 0
adjrange 3 0 0 900 900 0 0
adjrange 4 0 0 900 900 0 0
adjrange 5 0 0 900 900 0 0
adjrange 6 0 0 900 900 0 0
adjrange 7 0 0 900 900 0 0
adjrange 8 0 0 900 900 0 0
adjrange 9 0 0 900 900 0 0
adjrange 10 0 0 900 900 0 0
adjrange 11 0 0 900 900 0 0
adjrange 12 0 0 900 900 0 0
adjrange 13 0 0 900 900 0 0
adjrange 14 0 0 900 900 0 0

rxrange

rxrange 0 1000 2000
rxrange 1 1000 2000
rxrange 2 1000 2000
rxrange 3 1000 2000

rxfail

rxfail 0 a
rxfail 1 a
rxfail 2 a
rxfail 3 a
rxfail 4 h
rxfail 5 h
rxfail 6 h
rxfail 7 h
rxfail 8 h
rxfail 9 h
rxfail 10 h
rxfail 11 h
rxfail 12 h
rxfail 13 h
rxfail 14 h
rxfail 15 h
rxfail 16 h
rxfail 17 h

master

set mid_rc = 0
set min_check = 0
set max_check = 0
set rssi_channel = 0
set rssi_scale = 30
set rc_interpolation = OFF
set rc_interpolation_interval = 0
set rssi_ppm_invert = OFF
set input_filtering_mode = OFF
set roll_yaw_cam_mix_degrees = 0
set max_aux_channels = 6
set debug_mode = NONE
set min_throttle = 1060
set max_throttle = 1980
set min_command = 1000
set servo_center_pulse = 1500
set max_esc_throttle_jump = 0
set 3d_deadband_low = 1406
set 3d_deadband_high = 1514
set 3d_neutral = 1460
set 3d_deadband_throttle = 50
set use_unsynced_pwm = OFF
set motor_pwm_protocol = ONESHOT125
set motor_pwm_rate = 400
set servo_pwm_rate = 50
set disarm_kill_switch = ON
set gyro_cal_on_first_arm = OFF
set auto_disarm_delay = 5
set small_angle = 25
set fixedwing_althold_dir = 1
set reboot_character = 82
set serialrx_provider = SBUS
set sbus_inversion = ON
set spektrum_sat_bind = 0
set spektrum_sat_bind_autoreset = 1
set telemetry_switch = ON
set telemetry_inversion = OFF
set frsky_default_lattitude = 0.000
set frsky_default_longitude = 0.000
set frsky_coordinates_format = 0
set frsky_unit = IMPERIAL
set frsky_vfas_precision = 0
set frsky_vfas_cell_voltage = OFF
set hott_alarm_sound_interval = 5
set battery_capacity = 0
set vbat_scale = 110
set vbat_max_cell_voltage = 43
set vbat_min_cell_voltage = 33
set vbat_warning_cell_voltage = 35
set vbat_hysteresis = 1
set current_meter_scale = 400
set current_meter_offset = 0
set multiwii_current_meter_output = OFF
set current_meter_type = ADC
set align_gyro = DEFAULT
set align_acc = DEFAULT
set align_mag = DEFAULT
set align_board_roll = 0
set align_board_pitch = 0
set align_board_yaw = 0
set max_angle_inclination = 700
set gyro_lpf = OFF
set gyro_sync_denom = 8
set gyro_lowpass_type = PT1
set gyro_lowpass = 100
set gyro_notch1_hz = 400
set gyro_notch1_cutoff = 300
set gyro_notch2_hz = 200
set gyro_notch2_cutoff = 100
set moron_threshold = 32
set imu_dcm_kp = 2500
set imu_dcm_ki = 0
set alt_hold_deadband = 40
set alt_hold_fast_change = ON
set deadband = 0
set yaw_deadband = 0
set throttle_correction_value = 0
set throttle_correction_angle = 800
set yaw_control_direction = 1
set yaw_motor_direction = 1
set tri_unarmed_servo = ON
set servo_lowpass_freq = 400
set servo_lowpass_enable = OFF
set airmode_activate_throttle = 0
set failsafe_delay = 10
set failsafe_off_delay = 10
set failsafe_throttle = 1000
set failsafe_kill_switch = OFF
set failsafe_throttle_low_delay = 100
set failsafe_procedure = DROP
set rx_min_usec = 0
set rx_max_usec = 0
set gimbal_mode = NORMAL
set acc_hardware = AUTO
set acc_lpf_hz = 10.000
set accxy_deadband = 40
set accz_deadband = 40
set acc_unarmedcal = ON
set acc_trim_pitch = 0
set acc_trim_roll = 0
set pid_process_denom = 1
set blackbox_rate_num = 1
set blackbox_rate_denom = 1
set blackbox_device = SERIAL
set blackbox_on_motor_test = OFF
set ledstrip_visual_beeper = OFF

profile

profile 0

set pid_delta_method = MEASUREMENT
set yaw_p_limit = 500
set pidsum_limit = 700
set dterm_lowpass_type = BIQUAD
set dterm_lowpass = 100
set dterm_notch_hz = 260
set dterm_notch_cutoff = 160
set vbat_pid_compensation = OFF
set pid_at_min_throttle = ON
set iterm_throttle_gain = 0
set setpoint_relax_ratio = 30
set dterm_setpoint_weight = 200
set yaw_rate_accel_limit = 220
set rate_accel_limit = 0
set accum_threshold = 130
set yaw_accum_threshold = 32
set yaw_lowpass = 80
set pid_controller = BETAFLIGHT
set p_pitch = 50
set i_pitch = 40
set d_pitch = 18
set p_roll = 45
set i_roll = 40
set d_roll = 18
set p_yaw = 80
set i_yaw = 45
set d_yaw = 20
set p_alt = 50
set i_alt = 0
set d_alt = 0
set p_level = 50
set i_level = 50
set d_level = 100
set p_vel = 55
set i_vel = 55
set d_vel = 75
set level_sensitivity = 2.000
rateprofile 0

rateprofile

rateprofile 0

set rc_rate = 100
set rc_rate_yaw = 100
set rc_expo = 10
set rc_yaw_expo = 10
set thr_mid = 50
set thr_expo = 0
set roll_srate = 70
set pitch_srate = 70
set yaw_srate = 70
set tpa_rate = 20
set tpa_breakpoint = 1650

Cyclone3D · 23 August 2017 21:54

I am sorry…I am a dealer for FrSky and use the X6R quite a bit and I use a ton of the N32r6 so I think I can help but what I missing here is the wiring. I see the pics but where is your wiring? I would like to see the setup on the machine…PC to see if there is really something of issue or if this is simply a few settings.

My company, Cyclone3D offers remote assistance and I would be willing to help you for free this time around to see if we can make it work. It is simply quicker that way. Let me know if you are interested.

PaulS · 24 August 2017 04:19

This looks like the same problem people are getting with Betaflight. Your CLI shows that it has set your servo settings to zero. Check this on the servo page and if so alter to 1000, 1500 and 2000. Thats why the bars on the servo tab flick on and then disappear. Your failsafe is set at 1000 and I think this should be a bit less, (about 850) but it might be ok.

jdevroed · 24 September 2017 18:57

Stephen

Many thanks for your proposal and sorry it took me a while to assemble
below information…

I’ve tried the below with two receivers: FrSky X6R with SBUS, and an
X4R who is PPM.

I am only gonna continue describing my test with the X6R, but the
symptoms are identical with the x4r. (I am 99% certain about the wiring

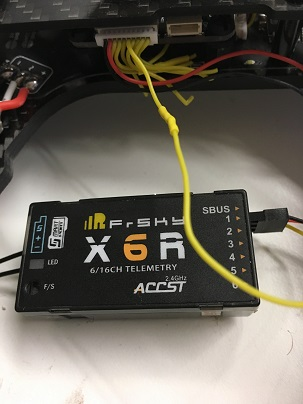

for SBUS on a Naze32 you need +/- and signal from the 5th pin
(counting from the +). For CPPM signal of 1st yellow wire).

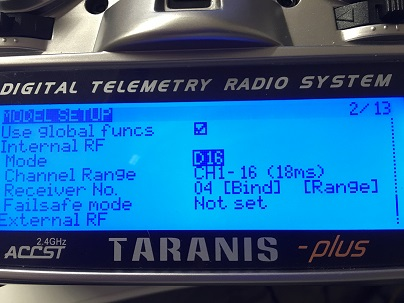

taranis screen

My Taranis makes a connection, and the green LED on the X6R lights up
green and stays that way, which tells me they are connected. When I
unplug the drone, the Taranis says “Telemetry lost” and when I restart
the taranis he says “Recovered”.

My CleanFlight settings also seem to be correct I think.

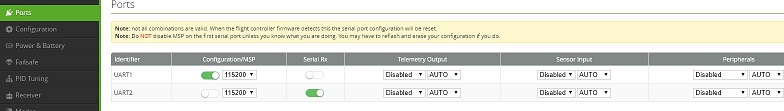

SerialRX port on

ports

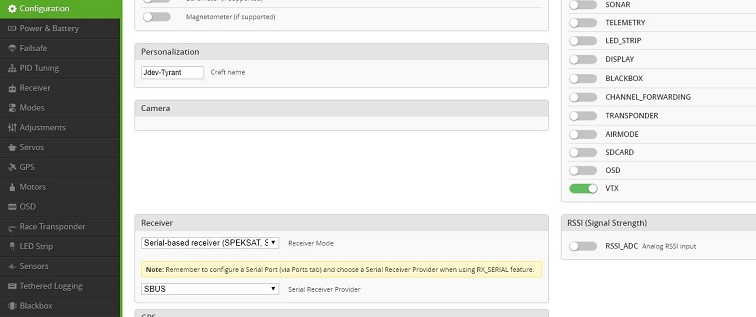

SBUS set as receiver

configuration

But when I click on the receiver tab, the lines flip to zero immediately

And nothing moves anymore when I touch the switches

And…my Taranis, he works with other drones

I’ve tried the above with and without a battery connected…no diff…

And I think I can remember seeing this work when I first connected the
Tyrant…

I’ve also attached a CLI dump…

Yesterday I went to a droneshop nearby. The guy at the counter
immediatelyconfirmed all the above. But he counldn’t solve it either,
and since they were only selling Horizon stuff, he didn’t have another
receiver for me (no FrSky products in store).

I would be really delighted if you can help me solving this…

Regards

Jeroen

jdevroed · 3 October 2017 19:06

An update…wasn’t eager to flash the board in the beginning but after I went to a RC shop and the guy beind the counter couldn’t help me out either…I came to the conclusion that I was out of other options
I took a backup, flashed the board with latest NAZE32 in BETAflight, and voila…controls are back…

Thx for all the suggestions…

Jeroen

unmannedtech1 · 3 October 2017 22:01

I know it’s been a while, but did the suggestion from @PaulS work? As many of us have experienced this big recently with stock setting resetting to 0 so you just need to change it back :
